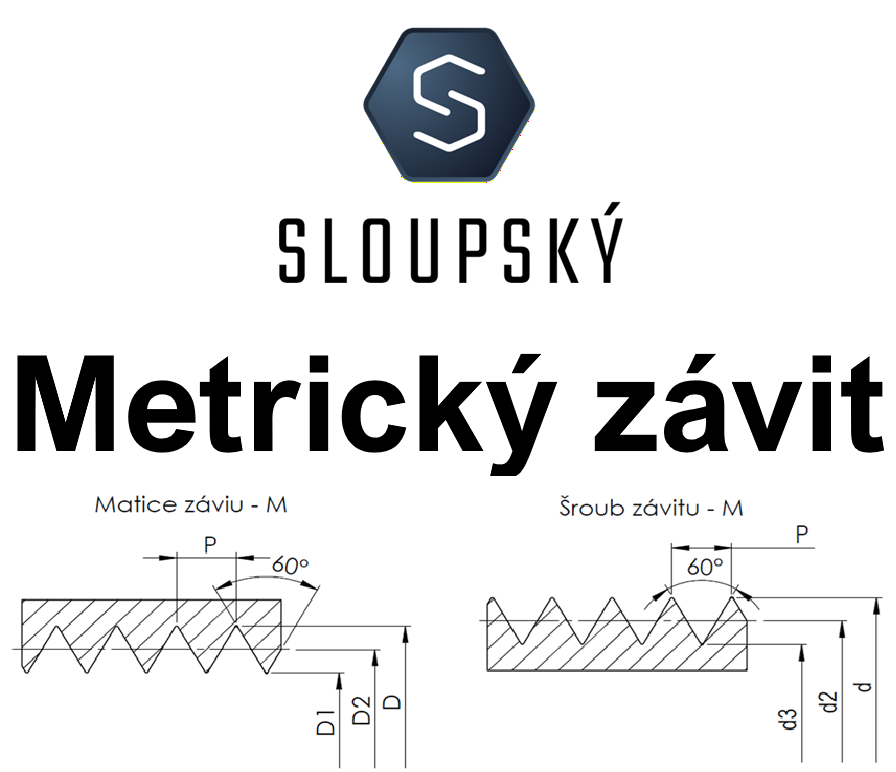

Metrické závity
O
|
značení závitu
|
P stoupání [mm] | Třída přesnosti šroubu | D=d max | D=d min | D2 max | D2 min | d3 max | d3 min | Třída přesnosti matice | D1 min | D1 max | d2 min | d2 max | D=d min | D=d max | Předvrtaný průměr [mm] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2x0.4 | 0.4 | 6g | 1.981 | 1.886 | 1.721 | 1.654 | 1.548 | 1.408 | 6H | 1.567 | 1.679 | 1.74 | 1.83 | 2 | 2.148 | 1.6 | |
| M2x0.25 | 0.25 | 6g | 1.982 | 1.915 | 1.82 | 1.764 | 1.711 | 1.61 | 6H | 1.729 | 1.809 | 1.838 | 1.913 | 2 | 2.111 | 1.75 | |
| M2.2x0.45 | 0.45 | 6g | 2.18 | 2.08 | 1.888 | 1.817 | 1.693 | 1.54 | 6H | 1.713 | 1.838 | 1.908 | 2.003 | 2.2 | 2.36 | 1.75 | |
| M2.2x0.25 | 0.25 | 6g | 2.182 | 2.115 | 2.02 | 1.964 | 1.911 | 1.81 | 6H | 1.929 | 2.009 | 2.038 | 2.113 | 2.2 | 2.311 | 1.95 | |
| M2.3x0.45 | 0.45 | 6g | 2.28 | 2.18 | 1.988 | 1.917 | 1.793 | 1.64 | 6H | 1.813 | 1.938 | 2.008 | 2.103 | 2.3 | 2.46 | 1.85 | |
| M2.3x0.4 | 0.4 | 6g | 2.281 | 2.186 | 2.021 | 1.954 | 1.848 | 1.708 | 6H | 1.867 | 1.979 | 2.04 | 2.13 | 2.3 | 2.448 | 1.9 | |
| M2.5x0.45 | 0.45 | 6g | 2.48 | 2.38 | 2.188 | 2.117 | 1.993 | 1.84 | 6H | 2.013 | 2.138 | 2.208 | 2.303 | 2.5 | 2.66 | 2.05 | |
| M2.5x0.35 | 0.35 | 6g | 2.481 | 2.396 | 2.254 | 2.191 | 2.102 | 1.975 | 6H | 2.121 | 2.221 | 2.273 | 2.358 | 2.5 | 2.636 | 2.15 | |
| M2.6x0.45 | 0.45 | 6g | 2.58 | 2.48 | 2.288 | 2.217 | 2.093 | 1.94 | 6H | 2.113 | 2.238 | 2.308 | 2.393 | 2.6 | 2.75 | 2.15 | |
| M3x0.5 | 0.5 | 6g | 2.98 | 2.874 | 2.655 | 2.58 | 2.439 | 2.272 | 6H | 2.459 | 2.599 | 2.675 | 2.775 | 3 | 3.172 | 2.5 | |
| M3x0.35 | 0.35 | 6g | 2.981 | 2.896 | 2.754 | 2.687 | 2.602 | 2.471 | 6H | 2.621 | 2.721 | 2.773 | 2.863 | 3 | 3.141 | 2.65 | |
| M3.5x0.6 | 0.6 | 6g | 3.479 | 3.354 | 3.089 | 3.004 | 2.829 | 2.635 | 6H | 2.85 | 3.01 | 3.11 | 3.222 | 3.5 | 3.699 | 2.9 | |
| M3.5x0.35 | 0.35 | 6g | 3.481 | 3.396 | 3.254 | 3.187 | 3.102 | 2.971 | 6H | 3.121 | 3.221 | 3.273 | 3.363 | 3.5 | 3.641 | 3.15 | |
| M4x0.7 | 0.7 | 6g | 3.978 | 3.838 | 3.523 | 3.433 | 3.22 | 3.002 | 6H | 3.242 | 3.422 | 3.545 | 3.663 | 4 | 4.219 | 3.3 | |
| M4x0.5 | 0.5 | 6g | 3.98 | 3.874 | 3.655 | 3.58 | 3.439 | 3.272 | 6H | 3.459 | 3.599 | 3.675 | 3.775 | 4 | 4.172 | 3.5 | |
| M4.5x0.75 | 0.75 | 6g | 4.478 | 4.338 | 3.991 | 3.901 | 3.666 | 3.439 | 6H | 3.688 | 3.878 | 4.013 | 4.131 | 4.5 | 4.726 | 3.75 | |
| M4.5x0.5 | 0.5 | 6g | 4.48 | 4.374 | 4.155 | 4.08 | 3.939 | 3.772 | 6H | 3.959 | 4.099 | 4.175 | 4.275 | 4.5 | 4.672 | 4 | |
| M5x0.8 | 0.8 | 6g | 4.976 | 4.826 | 4.456 | 4.361 | 4.11 | 3.869 | 6H | 4.134 | 4.334 | 4.48 | 4.605 | 5 | 5.24 | 4.2 | |
| M5x0.5 | 0.5 | 6g | 4.98 | 4.874 | 4.655 | 4.58 | 4.439 | 4.272 | 6H | 4.459 | 4.599 | 4.675 | 4.775 | 5 | 5.172 | 4.5 | |
| M5.5x0.5 | 0.5 | 6g | 5.48 | 5.374 | 5.155 | 5.065 | 4.939 | 4.757 | 6H | 4.959 | 5.099 | 5.175 | 5.295 | 5.5 | 5.692 | 5 | |
| M6x1 | 1 | 6g | 5.974 | 5.794 | 5.324 | 5.212 | 4.891 | 4.596 | 6H | 4.917 | 5.153 | 5.35 | 5.5 | 6 | 6.294 | 5 | |
| M6x0.8 | 0.8 | 6g | 5.976 | 5.826 | 5.456 | 5.376 | 5.11 | 4.884 | 6H | 5.134 | 5.334 | 5.48 | 5.586 | 6 | 6.221 | 5.2 | |
| M6x0.75 | 0.75 | 6g | 5.978 | 5.838 | 5.491 | 5.391 | 5.166 | 4.929 | 6H | 5.188 | 5.378 | 5.513 | 5.645 | 6 | 6.24 | 5.25 | |
| M6x0.7 | 0.7 | 6g | 5.978 | 5.838 | 5.523 | 5.428 | 5.22 | 4.997 | 6H | 5.242 | 5.422 | 5.545 | 5.671 | 6 | 6.226 | 5.3 | |
| M6x0.5 | 0.5 | 6g | 5.98 | 5.874 | 5.655 | 5.57 | 5.439 | 5.262 | 6H | 5.459 | 5.599 | 5.675 | 5.787 | 6 | 6.184 | 5.5 | |
| M7x1 | 1 | 6g | 6.974 | 6.794 | 6.324 | 6.212 | 5.891 | 5.596 | 6H | 5.917 | 6.153 | 6.35 | 6.5 | 7 | 7.294 | 6 | |
| M7x0.75 | 0.75 | 6g | 6.978 | 6.838 | 6.491 | 6.391 | 6.166 | 5.929 | 6H | 6.188 | 6.378 | 6.513 | 6.645 | 7 | 7.24 | 6.25 | |
| M7x0.5 | 0.5 | 6g | 6.98 | 6.874 | 6.655 | 6.57 | 6.439 | 6.262 | 6H | 6.459 | 6.599 | 6.675 | 6.787 | 7 | 7.184 | 6.5 | |
| M8x1.25 | 1.25 | 6g | 7.972 | 7.76 | 7.16 | 7.042 | 6.619 | 6.272 | 6H | 6.647 | 6.912 | 7.188 | 7.348 | 8 | 8.34 | 6.75 | |
| M8x1 | 1 | 6g | 7.974 | 7.794 | 7.324 | 7.212 | 6.891 | 6.596 | 6H | 6.917 | 7.153 | 7.35 | 7.5 | 8 | 8.294 | 7 | |
| M8x0.8 | 0.8 | 6g | 7.976 | 7.826 | 7.456 | 7.35 | 7.11 | 6.858 | 6H | 7.134 | 7.334 | 7.48 | 7.62 | 8 | 8.255 | 7.2 | |
| M8x0.75 | 0.75 | 6g | 7.978 | 7.838 | 7.491 | 7.391 | 7.166 | 6.929 | 6H | 7.188 | 7.378 | 7.513 | 7.645 | 8 | 8.24 | 7.25 | |
| M8x0.5 | 0.5 | 6g | 7.98 | 7.874 | 7.655 | 7.57 | 7.439 | 7.262 | 6H | 7.459 | 7.599 | 7.675 | 7.787 | 8 | 8.184 | 7.5 | |
| M9x1.25 | 1.25 | 6g | 8.972 | 8.76 | 8.16 | 8.042 | 7.619 | 7.272 | 6H | 7.647 | 7.912 | 8.188 | 8.348 | 9 | 9.34 | 7.75 | |
| M9x1 | 1 | 6g | 8.974 | 8.794 | 8.324 | 8.212 | 7.891 | 7.596 | 6H | 7.917 | 8.153 | 8.35 | 8.498 | 9 | 9.292 | 8 | |
| M9x0.75 | 0.75 | 6g | 8.978 | 8.838 | 8.491 | 8.391 | 8.166 | 7.929 | 6H | 8.188 | 8.378 | 8.513 | 8.645 | 9 | 9.24 | 8.25 | |
| M9x0.5 | 0.5 | 6g | 8.98 | 8.874 | 8.655 | 8.57 | 8.439 | 8.262 | 6H | 8.459 | 8.599 | 8.675 | 8.787 | 9 | 9.184 | 8.5 | |
| M10x1.5 | 1.5 | 6g | 9.968 | 9.732 | 8.994 | 8.862 | 8.344 | 7.938 | 6H | 8.376 | 8.676 | 9.026 | 9.206 | 10 | 10.396 | 8.5 | |
| M10x1.25 | 1.25 | 6g | 9.972 | 9.76 | 9.16 | 9.042 | 8.619 | 8.272 | 6H | 8.647 | 8.912 | 9.188 | 9.348 | 10 | 10.34 | 8.75 | |
| M10x1.12 | 1.12 | 6g | 9.973 | 9.783 | 9.246 | 9.128 | 8.761 | 8.438 | 6H | 8.788 | 9.038 | 9.273 | 9.433 | 10 | 10.322 | 8.88 | |
| M10x1 | 1 | 6g | 9.974 | 9.794 | 9.324 | 9.212 | 8.891 | 8.596 | 6H | 8.917 | 9.153 | 9.35 | 9.5 | 10 | 10.294 | 9 | |
| M10x0.75 | 0.75 | 6g | 9.978 | 9.838 | 9.491 | 9.391 | 9.166 | 8.929 | 6H | 9.188 | 9.378 | 9.513 | 9.645 | 10 | 10.24 | 9.25 | |
| M10x0.5 | 0.5 | 6g | 9.98 | 9.874 | 9.655 | 9.57 | 9.439 | 9.262 | 6H | 9.459 | 9.599 | 9.675 | 9.787 | 10 | 10.184 | 9.5 | |
| M11x1.5 | 1.5 | 6g | 10.97 | 10.73 | 9.994 | 9.862 | 9.344 | 8.938 | 6H | 9.376 | 9.676 | 10.026 | 10.196 | 11 | 11.387 | 9.5 | |
| M11x1 | 1 | 6g | 10.97 | 10.79 | 10.32 | 10.21 | 9.891 | 9.596 | 6H | 9.917 | 10.153 | 10.35 | 10.5 | 11 | 11.294 | 10 | |
| M11x0.75 | 0.75 | 6g | 10.98 | 10.84 | 10.49 | 10.39 | 10.166 | 9.929 | 6H | 10.188 | 10.378 | 10.513 | 10.645 | 11 | 11.24 | 10.25 | |
| M11x0.5 | 0.5 | 6g | 10.98 | 10.87 | 10.66 | 10.57 | 10.439 | 10.262 | 6H | 10.459 | 10.599 | 10.675 | 10.787 | 11 | 11.184 | 10.5 | |
| M12x1.75 | 1.75 | 6g | 11.97 | 11.7 | 10.83 | 10.68 | 10.072 | 9.601 | 6H | 10.106 | 10.441 | 10.863 | 11.063 | 12 | 12.453 | 10.25 | |
| M12x1.5 | 1.5 | 6g | 11.97 | 11.73 | 10.99 | 10.85 | 10.344 | 9.93 | 6H | 10.376 | 10.676 | 11.026 | 11.216 | 12 | 12.406 | 10.5 | |
| M12x1.25 | 1.25 | 6g | 11.97 | 11.76 | 11.16 | 11.03 | 10.619 | 10.258 | 6H | 10.647 | 10.912 | 11.188 | 11.368 | 12 | 12.36 | 10.75 | |
| M12x1 | 1 | 6g | 11.97 | 11.79 | 11.32 | 11.21 | 10.891 | 10.59 | 6H | 10.917 | 11.153 | 11.35 | 11.51 | 12 | 12.304 | 11 | |
| M12x0.75 | 0.75 | 6g | 11.98 | 11.84 | 11.49 | 11.39 | 11.166 | 10.923 | 6H | 11.188 | 11.378 | 11.513 | 11.653 | 12 | 12.248 | 11.25 | |
| M12x0.5 | 0.5 | 6g | 11.98 | 11.87 | 11.66 | 11.57 | 11.439 | 11.257 | 6H | 11.459 | 11.599 | 11.675 | 11.795 | 12 | 12.192 | 11.5 | |
| M14x2 | 2 | 6g | 13.96 | 13.68 | 12.66 | 12.5 | 11.797 | 11.271 | 6H | 11.835 | 12.21 | 12.701 | 12.913 | 14 | 14.501 | 12 | |
| M14x1.5 | 1.5 | 6g | 13.97 | 13.73 | 12.99 | 12.85 | 12.344 | 11.93 | 6H | 12.376 | 12.676 | 13.026 | 13.216 | 14 | 14.406 | 12.5 | |
| M14x1.25 | 1.25 | 6g | 13.97 | 13.76 | 13.16 | 13.03 | 12.619 | 12.258 | 6H | 12.647 | 12.912 | 13.188 | 13.358 | 14 | 14.35 | 12.75 | |
| M14x1 | 1 | 6g | 13.97 | 13.79 | 13.32 | 13.21 | 12.891 | 12.59 | 6H | 12.917 | 13.153 | 13.35 | 13.51 | 14 | 14.304 | 13 | |
| M14x0.75 | 0.75 | 6g | 13.98 | 13.84 | 13.49 | 13.39 | 13.166 | 12.923 | 6H | 13.188 | 13.378 | 13.513 | 13.653 | 14 | 14.248 | 13.25 | |
| M14x0.5 | 0.5 | 6g | 13.98 | 13.87 | 13.66 | 13.57 | 13.439 | 13.257 | 6H | 13.459 | 13.599 | 13.675 | 13.795 | 14 | 14.192 | 13.5 | |
| M15x1.5 | 1.5 | 6g | 14.97 | 14.73 | 13.99 | 13.85 | 13.344 | 12.93 | 6H | 13.376 | 13.676 | 14.026 | 14.216 | 15 | 15.407 | 13.5 | |
| M15x1 | 1 | 6g | 14.97 | 14.79 | 14.32 | 14.21 | 13.891 | 13.59 | 6H | 13.917 | 14.153 | 14.35 | 14.51 | 15 | 15.304 | 14 | |
| M16x2 | 2 | 6g | 15.96 | 15.68 | 14.66 | 14.5 | 13.797 | 13.271 | 6H | 13.835 | 14.21 | 14.701 | 14.913 | 16 | 16.501 | 14 | |
| M16x1.6 | 1.6 | 6g | 15.97 | 15.76 | 14.93 | 14.82 | 14.236 | 13.838 | 6H | 14.268 | 14.568 | 14.961 | 15.101 | 16 | 16.371 | 14.4 | |
| M16x1.5 | 1.5 | 6g | 15.97 | 15.73 | 14.99 | 14.85 | 14.344 | 13.93 | 6H | 14.376 | 14.676 | 15.026 | 15.216 | 16 | 16.406 | 14.5 | |
| M16x1.25 | 1.25 | 6g | 15.97 | 15.76 | 15.16 | 15.03 | 14.619 | 14.258 | 6H | 14.647 | 14.912 | 15.188 | 15.358 | 16 | 16.35 | 14.75 | |
| M16x1 | 1 | 6g | 15.97 | 15.79 | 15.32 | 15.21 | 14.891 | 14.59 | 6H | 14.917 | 15.153 | 15.35 | 15.51 | 16 | 16.304 | 15 | |
| M16x0.75 | 0.75 | 6g | 15.98 | 15.84 | 15.49 | 15.39 | 15.166 | 14.923 | 6H | 15.188 | 15.378 | 15.513 | 15.653 | 16 | 16.248 | 15.25 | |
| M16x0.5 | 0.5 | 6g | 15.98 | 15.87 | 15.66 | 15.57 | 15.439 | 15.257 | 6H | 15.459 | 15.599 | 15.675 | 15.795 | 16 | 16.192 | 15.5 | |
| M17x1.5 | 1.5 | 6g | 16.97 | 16.73 | 15.99 | 15.85 | 15.344 | 14.93 | 6H | 15.376 | 15.676 | 16.026 | 16.216 | 17 | 17.407 | 15.5 | |
| M17x1 | 1 | 6g | 16.97 | 16.79 | 16.32 | 16.21 | 15.891 | 15.59 | 6H | 15.917 | 16.153 | 16.35 | 16.51 | 17 | 17.304 | 16 | |
| M18x2.5 | 2.5 | 6g | 17.96 | 17.62 | 16.33 | 16.16 | 15.252 | 14.624 | 6H | 15.294 | 15.744 | 16.376 | 16.601 | 18 | 18.585 | 15.5 | |
| M18x2 | 2 | 6g | 17.96 | 17.68 | 16.66 | 16.5 | 15.797 | 15.271 | 6H | 15.835 | 16.21 | 16.701 | 16.913 | 18 | 18.501 | 16 | |
| M18x1.5 | 1.5 | 6g | 17.97 | 17.73 | 16.99 | 16.85 | 16.344 | 15.93 | 6H | 16.376 | 16.676 | 17.026 | 17.216 | 18 | 18.406 | 16.5 | |
| M18x1.25 | 1.25 | 6g | 17.97 | 17.76 | 17.16 | 17.03 | 16.619 | 16.258 | 6H | 16.647 | 16.912 | 17.188 | 17.358 | 18 | 18.35 | 16.75 | |
| M18x1 | 1 | 6g | 17.97 | 17.79 | 17.32 | 17.21 | 16.891 | 16.59 | 6H | 16.917 | 17.153 | 17.35 | 17.51 | 18 | 18.304 | 17 | |
| M18x0.75 | 0.75 | 6g | 17.98 | 17.84 | 17.49 | 17.39 | 17.166 | 16.923 | 6H | 17.188 | 17.378 | 17.513 | 17.653 | 18 | 18.248 | 17.25 | |
| M18x0.5 | 0.5 | 6g | 17.98 | 17.87 | 17.66 | 17.57 | 17.439 | 17.257 | 6H | 17.459 | 17.599 | 17.675 | 17.795 | 18 | 18.192 | 17.5 | |
| M20x2.5 | 2.5 | 6g | 19.96 | 19.62 | 18.33 | 18.16 | 17.252 | 16.624 | 6H | 17.294 | 17.744 | 18.376 | 18.6 | 20 | 20.585 | 17.5 | |
| M20x2 | 2 | 6g | 19.96 | 19.68 | 18.66 | 18.5 | 17.797 | 17.271 | 6H | 17.835 | 18.21 | 18.701 | 18.913 | 20 | 20.501 | 18 | |
| M20x1.5 | 1.5 | 6g | 19.97 | 19.73 | 18.99 | 18.85 | 18.344 | 17.93 | 6H | 18.376 | 18.676 | 19.026 | 19.216 | 20 | 20.406 | 18.5 | |
| M20x1 | 1 | 6g | 19.97 | 19.79 | 19.32 | 19.21 | 18.891 | 18.59 | 6H | 18.917 | 19.153 | 19.35 | 19.51 | 20 | 20.304 | 19 | |
| M20x0.75 | 0.75 | 6g | 19.98 | 19.84 | 19.49 | 19.39 | 19.166 | 18.923 | 6H | 19.188 | 19.378 | 19.513 | 19.653 | 20 | 20.248 | 19.25 | |
| M20x0.5 | 0.5 | 6g | 19.98 | 19.87 | 19.66 | 19.57 | 19.439 | 19.257 | 6H | 19.459 | 19.599 | 19.675 | 19.795 | 20 | 20.192 | 19.5 | |
| M22x3 | 3 | 6g | 21.95 | 21.58 | 20 | 19.82 | 18.704 | 17.97 | 6H | 18.752 | 19.252 | 20.051 | 20.296 | 22 | 22.677 | 19 | |
| M22x2.5 | 2.5 | 6g | 21.96 | 21.62 | 20.33 | 20.16 | 19.252 | 18.624 | 6H | 19.294 | 19.744 | 20.376 | 20.6 | 22 | 22.585 | 19.5 | |
| M22x2 | 2 | 6g | 21.96 | 21.68 | 20.66 | 20.5 | 19.797 | 19.271 | 6H | 19.835 | 20.21 | 20.701 | 20.913 | 22 | 22.501 | 20 | |
| M22x1.5 | 1.5 | 6g | 21.97 | 21.73 | 20.99 | 20.85 | 20.344 | 19.93 | 6H | 20.376 | 20.676 | 21.026 | 21.216 | 22 | 22.406 | 20.5 | |
| M22x1 | 1 | 6g | 21.97 | 21.79 | 21.32 | 21.21 | 20.891 | 20.59 | 6H | 20.917 | 21.153 | 21.35 | 21.51 | 22 | 22.304 | 21 | |
| M22x0.75 | 0.75 | 6g | 21.98 | 21.84 | 21.49 | 21.39 | 21.166 | 20.923 | 6H | 21.188 | 21.378 | 21.513 | 21.653 | 22 | 22.248 | 21.25 | |
| M22x0.5 | 0.5 | 6g | 21.98 | 21.87 | 21.66 | 21.57 | 21.439 | 21.257 | 6H | 21.459 | 21.599 | 21.675 | 21.795 | 22 | 22.192 | 21.5 | |
| M24x3 | 3 | 6g | 23.95 | 23.58 | 22 | 21.8 | 20.704 | 19.955 | 6H | 20.752 | 21.252 | 22.051 | 22.316 | 24 | 24.698 | 21 | |
| M24x2.5 | 2.5 | 6g | 23.96 | 23.62 | 22.33 | 22.14 | 21.252 | 20.604 | 6H | 21.294 | 21.744 | 22.376 | 22.626 | 24 | 24.611 | 21.5 | |
| M24x2 | 2 | 6g | 23.96 | 23.68 | 22.66 | 22.49 | 21.797 | 21.261 | 6H | 21.835 | 22.21 | 22.701 | 22.925 | 24 | 24.513 | 22 | |
| M24x1.5 | 1.5 | 6g | 23.97 | 23.73 | 22.99 | 22.84 | 22.344 | 21.92 | 6H | 22.376 | 22.676 | 23.026 | 23.226 | 24 | 24.417 | 22.5 | |
| M24x1 | 1 | 6g | 23.97 | 23.79 | 23.32 | 23.2 | 22.891 | 22.583 | 6H | 22.917 | 23.153 | 23.35 | 23.52 | 24 | 24.314 | 23 | |
| M24x0.75 | 0.75 | 6g | 23.98 | 23.84 | 23.49 | 23.38 | 23.166 | 22.917 | 6H | 23.188 | 23.378 | 23.513 | 23.663 | 24 | 24.258 | 23.25 | |
| M25x2 | 2 | 6g | 24.96 | 24.68 | 23.66 | 23.49 | 22.797 | 22.261 | 6H | 22.835 | 23.21 | 23.701 | 23.925 | 25 | 25.513 | 23 | |
| M25x1.5 | 1.5 | 6g | 24.97 | 24.73 | 23.99 | 23.84 | 23.344 | 22.92 | 6H | 23.376 | 23.676 | 24.026 | 24.226 | 25 | 25.416 | 23.5 | |
| M25x1 | 1 | 6g | 24.97 | 24.79 | 24.32 | 24.2 | 23.891 | 23.583 | 6H | 23.917 | 24.153 | 24.35 | 24.52 | 25 | 25.314 | 24 | |
| M26x1.5 | 1.5 | 6g | 25.97 | 25.73 | 24.99 | 24.84 | 24.344 | 23.92 | 6H | 24.376 | 24.676 | 25.026 | 25.226 | 26 | 26.417 | 24.5 | |
| M27x3 | 3 | 6g | 26.95 | 26.58 | 25 | 24.8 | 23.704 | 22.955 | 6H | 23.752 | 24.252 | 25.051 | 25.316 | 27 | 27.698 | 24 | |
| M27x2 | 2 | 6g | 26.96 | 26.68 | 25.66 | 25.49 | 24.797 | 24.261 | 6H | 24.835 | 25.21 | 25.701 | 25.925 | 27 | 27.513 | 25 | |
| M27x1.5 | 1.5 | 6g | 26.97 | 26.73 | 25.99 | 25.84 | 25.344 | 24.92 | 6H | 25.376 | 25.676 | 26.026 | 26.226 | 27 | 27.417 | 25.5 | |
| M27x1 | 1 | 6g | 26.97 | 26.79 | 26.32 | 26.2 | 25.891 | 25.583 | 6H | 25.917 | 26.153 | 26.35 | 26.52 | 27 | 27.314 | 26 | |
| M27x0.75 | 0.75 | 6g | 26.98 | 26.84 | 26.49 | 26.38 | 26.166 | 25.917 | 6H | 26.188 | 26.378 | 26.513 | 26.663 | 27 | 27.258 | 26.25 | |
| M28x2 | 2 | 6g | 27.96 | 27.68 | 26.66 | 26.49 | 25.797 | 25.261 | 6H | 25.835 | 26.21 | 26.701 | 26.925 | 28 | 28.513 | 26 | |
| M28x1.5 | 1.5 | 6g | 27.97 | 27.73 | 26.99 | 26.84 | 26.344 | 25.92 | 6H | 26.376 | 26.676 | 27.026 | 27.226 | 28 | 28.417 | 26.5 | |
| M28x1 | 1 | 6g | 27.97 | 27.79 | 27.32 | 27.2 | 26.891 | 26.583 | 6H | 26.917 | 27.153 | 27.35 | 27.52 | 28 | 28.314 | 27 | |
| M30x3.5 | 3.5 | 6g | 29.95 | 29.52 | 27.67 | 27.46 | 26.158 | 25.306 | 6H | 26.211 | 26.771 | 27.727 | 28.007 | 30 | 30.785 | 26.5 | |
| M30x3 | 3 | 6g | 29.95 | 29.58 | 28 | 27.8 | 26.704 | 25.955 | 6H | 26.752 | 27.252 | 28.051 | 28.316 | 30 | 30.698 | 27 | |
| M30x2.5 | 2.5 | 6g | 29.96 | 29.62 | 28.33 | 28.14 | 27.252 | 26.604 | 6H | 27.294 | 27.744 | 28.376 | 28.626 | 30 | 30.611 | 27.5 | |
| M30x2 | 2 | 6g | 29.96 | 29.68 | 28.66 | 28.49 | 27.797 | 27.261 | 6H | 27.835 | 28.21 | 28.701 | 28.925 | 30 | 30.513 | 28 | |
| M30x1.5 | 1.5 | 6g | 29.97 | 29.73 | 28.99 | 28.84 | 28.344 | 27.92 | 6H | 28.376 | 28.676 | 29.026 | 29.226 | 30 | 30.416 | 28.5 | |
| M30x1 | 1 | 6g | 29.97 | 29.79 | 29.32 | 29.2 | 28.891 | 28.583 | 6H | 28.917 | 29.153 | 29.35 | 29.52 | 30 | 30.314 | 29 | |
| M30x0.75 | 0.75 | 6g | 29.98 | 29.84 | 29.49 | 29.38 | 29.166 | 28.917 | 6H | 29.188 | 29.378 | 29.513 | 29.663 | 30 | 30.258 | 29.25 | |
| M32x2 | 2 | 6g | 31.96 | 31.68 | 30.66 | 30.49 | 29.797 | 29.261 | 6H | 29.835 | 30.21 | 30.701 | 30.925 | 32 | 32.513 | 30 | |
| M32x1.5 | 1.5 | 6g | 31.97 | 31.73 | 30.99 | 30.84 | 30.344 | 29.92 | 6H | 30.376 | 30.676 | 31.026 | 31.226 | 32 | 32.417 | 30.5 | |
| M33x3.5 | 3.5 | 6g | 32.97 | 32.54 | 30.7 | 30.48 | 29.179 | 28.327 | 6H | 29.211 | 29.771 | 30.727 | 31.007 | 33 | 33.785 | 29.5 | |
| M33x3 | 3 | 6g | 32.95 | 32.58 | 31 | 30.8 | 29.704 | 28.955 | 6H | 29.752 | 30.252 | 31.051 | 31.316 | 33 | 33.698 | 30 | |
| M33x2 | 2 | 6g | 32.96 | 32.68 | 31.66 | 31.49 | 30.797 | 30.261 | 6H | 30.835 | 31.21 | 31.701 | 31.925 | 33 | 33.513 | 31 | |
| M33x1.5 | 1.5 | 6g | 32.97 | 32.73 | 31.99 | 31.84 | 31.344 | 30.92 | 6H | 31.376 | 31.676 | 32.026 | 32.226 | 33 | 33.417 | 31.5 | |
| M33x1 | 1 | 6g | 32.97 | 32.79 | 32.32 | 32.2 | 31.891 | 31.583 | 6H | 31.917 | 32.153 | 32.35 | 32.52 | 33 | 33.314 | 32 | |
| M33x0.75 | 0.75 | 6g | 32.98 | 32.84 | 32.49 | 32.38 | 32.166 | 31.917 | 6H | 32.188 | 32.378 | 32.513 | 32.663 | 33 | 33.258 | 32.25 | |
| M35x1.5 | 1.5 | 6g | 34.97 | 34.73 | 33.99 | 33.84 | 33.344 | 32.92 | 6H | 33.376 | 33.676 | 34.026 | 34.226 | 35 | 35.416 | 33.5 | |
| M36x4 | 4 | 6g | 35.94 | 35.47 | 33.34 | 33.12 | 31.61 | 30.654 | 6H | 31.67 | 32.27 | 33.402 | 33.702 | 36 | 36.877 | 32 | |
| M36x3 | 3 | 6g | 35.95 | 35.58 | 34 | 33.8 | 32.704 | 31.955 | 6H | 32.752 | 33.252 | 34.051 | 34.316 | 36 | 36.698 | 33 | |
| M36x2 | 2 | 6g | 35.96 | 35.68 | 34.66 | 34.49 | 33.797 | 33.261 | 6H | 33.835 | 34.21 | 34.701 | 34.925 | 36 | 36.513 | 34 | |
| M36x1.5 | 1.5 | 6g | 35.97 | 35.73 | 34.99 | 34.84 | 34.344 | 33.92 | 6H | 34.376 | 34.676 | 35.026 | 35.226 | 36 | 36.417 | 34.5 | |
| M36x1 | 1 | 6g | 35.97 | 35.79 | 35.32 | 35.2 | 34.891 | 34.583 | 6H | 34.917 | 35.153 | 35.35 | 35.52 | 36 | 36.314 | 35 | |
| M38x1.5 | 1.5 | 6g | 37.97 | 37.73 | 36.99 | 36.84 | 36.344 | 35.92 | 6H | 36.376 | 36.676 | 37.026 | 37.226 | 38 | 38.417 | 36.5 | |
| M39x4 | 4 | 6g | 38.94 | 38.47 | 36.34 | 36.12 | 34.61 | 33.654 | 6H | 34.67 | 35.27 | 36.402 | 36.702 | 39 | 39.877 | 35 | |
| M39x3 | 3 | 6g | 38.95 | 38.58 | 37 | 36.8 | 35.704 | 34.955 | 6H | 35.752 | 36.252 | 37.051 | 37.316 | 39 | 39.698 | 36 | |
| M39x2 | 2 | 6g | 38.96 | 38.68 | 37.66 | 37.49 | 36.797 | 36.261 | 6H | 36.835 | 37.21 | 37.701 | 37.925 | 39 | 39.513 | 37 | |
| M39x1.5 | 1,5 | 6g | 38.97 | 38.73 | 37.99 | 37.84 | 37.344 | 36.92 | 6H | 37.376 | 37.676 | 38.026 | 38.226 | 39 | 39.417 | 37.5 | |
| M39x1 | 1 | 6g | 38.97 | 38.79 | 38.32 | 38.2 | 37.891 | 37.583 | 6H | 37.917 | 38.153 | 38.35 | 38.52 | 39 | 39.314 | 38 | |
| M40x3 | 3 | 6g | 39.95 | 39.58 | 38 | 37.8 | 36.704 | 35.955 | 6H | 36.752 | 37.252 | 38.051 | 38.316 | 40 | 40.698 | 37 | |
| M40x2.5 | 2,5 | 6g | 39.96 | 39.62 | 38.33 | 38.14 | 37.252 | 36.604 | 6H | 37.294 | 37.744 | 38.376 | 38.626 | 40 | 40.611 | 37.5 | |
| M40x2 | 2 | 6g | 39.96 | 39.68 | 38.66 | 38.49 | 37.797 | 37.261 | 6H | 37.835 | 38.21 | 38.701 | 38.925 | 40 | 40.513 | 38 | |
| M40x1.5 | 1,5 | 6g | 39.97 | 39.73 | 38.99 | 38.84 | 38.344 | 37.92 | 6H | 38.376 | 38.676 | 39.026 | 39.226 | 40 | 40.416 | 38.5 | |
| M42x4.5 | 4,5 | 6g | 41.94 | 41.44 | 39.01 | 38.78 | 37.066 | 36.006 | 6H | 37.129 | 37.799 | 39.077 | 39.392 | 42 | 42.965 | 37.5 | |
| M42x4 | 4 | 6g | 41.94 | 41.47 | 39.34 | 39.12 | 37.61 | 36.654 | 6H | 37.67 | 38.27 | 39.402 | 39.702 | 42 | 42.877 | 38 | |
| M42x3 | 3 | 6g | 41.95 | 41.58 | 40 | 39.8 | 38.704 | 37.955 | 6H | 38.752 | 39.252 | 40.051 | 40.316 | 42 | 42.698 | 39 | |
| M42x2 | 2 | 6g | 41.96 | 41.68 | 40.66 | 40.49 | 39.797 | 39.261 | 6H | 39.835 | 40.21 | 40.701 | 40.925 | 42 | 42.513 | 40 | |
| M42x1.5 | 1,5 | 6g | 41.97 | 41.73 | 40.99 | 40.84 | 40.344 | 39.92 | 6H | 40.376 | 40.676 | 41.026 | 41.226 | 42 | 42.417 | 40.5 | |
| M42x1 | 1 | 6g | 41.97 | 41.79 | 41.32 | 41.2 | 40.891 | 40.583 | 6H | 40.917 | 41.153 | 41.35 | 41.52 | 42 | 42.314 | 41 | |
| M45x4.5 | 4,5 | 6g | 44.94 | 44.44 | 42.01 | 41.78 | 40.066 | 39.006 | 6H | 40.129 | 40.799 | 42.077 | 42.392 | 45 | 45.965 | 40.5 | |
| M45x4 | 4 | 6g | 44.94 | 44.47 | 42.34 | 42.12 | 40.61 | 39.654 | 6H | 40.67 | 41.27 | 42.402 | 42.702 | 45 | 45.877 | 41 | |
| M45x3 | 3 | 6g | 44.95 | 44.58 | 43 | 42.8 | 41.704 | 40.955 | 6H | 41.752 | 42.252 | 43.051 | 43.316 | 45 | 45.698 | 42 | |
| M45x2 | 2 | 6g | 44.96 | 44.68 | 43.66 | 43.49 | 42.797 | 42.261 | 6H | 42.835 | 43.21 | 43.701 | 43.925 | 45 | 45.513 | 43 | |
| M45x1.5 | 1,5 | 6g | 44.97 | 44.73 | 43.99 | 43.84 | 43.344 | 42.92 | 6H | 43.376 | 43.676 | 44.026 | 44.226 | 45 | 45.416 | 43.5 | |
| M45x1 | 1 | 6g | 44.97 | 44.79 | 44.32 | 44.2 | 43.891 | 43.583 | 6H | 43.917 | 44.153 | 44.35 | 44.52 | 45 | 45.314 | 44 | |
| M48x5 | 5 | 6g | 47.93 | 47.4 | 44.68 | 44.43 | 42.516 | 41.351 | 6H | 42.587 | 43.297 | 44.752 | 45.087 | 48 | 49.057 | 43 | |
| M48x4 | 4 | 6g | 47.94 | 47.47 | 45.34 | 45.11 | 43.61 | 42.642 | 6H | 43.67 | 44.27 | 45.402 | 45.717 | 48 | 48.892 | 44 | |
| M48x3 | 3 | 6g | 47.95 | 47.58 | 46 | 45.79 | 44.704 | 43.943 | 6H | 44.752 | 45.252 | 46.051 | 46.331 | 48 | 48.713 | 45 | |
| M48x2 | 2 | 6g | 47.96 | 47.68 | 46.66 | 46.48 | 45.797 | 45.251 | 6H | 45.835 | 46.21 | 46.701 | 46.937 | 48 | 48.525 | 46 | |
| M48x1.5 | 1,5 | 6g | 47.97 | 47.73 | 46.99 | 46.83 | 46.344 | 45.91 | 6H | 46.376 | 46.676 | 47.026 | 47.238 | 48 | 48.429 | 46.5 | |
| M50x4 | 4 | 6g | 49.94 | 49.47 | 47.34 | 47.11 | 45.61 | 44.642 | 6H | 45.67 | 46.27 | 47.402 | 47.717 | 50 | 50.892 | 46 | |
| M50x3 | 3 | 6g | 49.95 | 49.58 | 48 | 47.79 | 46.704 | 45.943 | 6H | 46.752 | 47.252 | 48.051 | 48.331 | 50 | 50.713 | 47 | |
| M50x2 | 2 | 6g | 49.96 | 49.68 | 48.66 | 48.48 | 47.797 | 47.251 | 6H | 47.835 | 48.21 | 48.701 | 48.937 | 50 | 50.525 | 48 | |
| M50x1.5 | 1,5 | 6g | 49.97 | 49.73 | 48.99 | 48.83 | 48.344 | 47.91 | 6H | 48.376 | 48.676 | 49.026 | 49.238 | 50 | 50.428 | 48.5 | |
| M52x5 | 5 | 6g | 51.93 | 51.4 | 48.68 | 48.45 | 46.516 | 45.365 | 6H | 46.587 | 47.297 | 48.752 | 49.067 | 52 | 53.037 | 47 | |
| M52x4 | 4 | 6g | 51.94 | 51.47 | 49.34 | 49.11 | 47.61 | 46.642 | 6H | 47.67 | 48.27 | 49.402 | 49.717 | 52 | 52.892 | 48 | |
| M52x3 | 3 | 6g | 51.95 | 51.58 | 50 | 49.79 | 48.704 | 47.943 | 6H | 48.752 | 49.252 | 50.051 | 50.331 | 52 | 52.713 | 49 | |
| M52x2 | 2 | 6g | 51.96 | 51.68 | 50.66 | 50.48 | 49.797 | 49.251 | 6H | 49.835 | 50.21 | 50.701 | 50.937 | 52 | 52.525 | 50 | |
| M52x1.5 | 1,5 | 6g | 51.97 | 51.73 | 50.99 | 50.83 | 50.344 | 49.91 | 6H | 50.376 | 50.676 | 51.026 | 51.238 | 52 | 52.429 | 50.5 | |
| M55x4 | 4 | 6g | 54.94 | 54.47 | 52.34 | 52.11 | 50.61 | 49.642 | 6H | 50.67 | 51.27 | 52.402 | 52.717 | 55 | 55.892 | 51 | |
| M55x3 | 3 | 6g | 54.95 | 54.58 | 53 | 52.79 | 51.704 | 50.943 | 6H | 51.752 | 52.252 | 53.051 | 53.331 | 55 | 55.713 | 52 | |
| M55x2 | 2 | 6g | 54.96 | 54.68 | 53.66 | 53.48 | 52.797 | 52.251 | 6H | 52.835 | 53.21 | 53.701 | 53.937 | 55 | 55.525 | 53 | |
| M55x1.5 | 1,5 | 6g | 54.97 | 54.73 | 53.99 | 53.83 | 53.344 | 52.91 | 6H | 53.376 | 53.676 | 54.026 | 54.238 | 55 | 55.428 | 53.5 | |
| M56x5.5 | 5,5 | 6g | 55.93 | 55.37 | 52.35 | 52.09 | 49.971 | 48.7 | 6H | 50.046 | 50.796 | 52.428 | 52.783 | 56 | 57.149 | 50.5 | |
| M56x4 | 4 | 6g | 55.94 | 55.47 | 53.34 | 53.11 | 51.61 | 50.642 | 6H | 51.67 | 52.27 | 53.402 | 53.717 | 56 | 56.892 | 52 | |
| M56x3 | 3 | 6g | 55.95 | 55.58 | 54 | 53.79 | 52.704 | 51.943 | 6H | 52.752 | 53.252 | 54.051 | 54.331 | 56 | 56.713 | 53 | |
| M56x2 | 2 | 6g | 55.96 | 55.68 | 54.66 | 54.48 | 53.797 | 53.251 | 6H | 53.835 | 54.21 | 54.701 | 54.937 | 56 | 56.525 | 54 | |
| M56x1.5 | 1,5 | 6g | 55.97 | 55.73 | 54.99 | 54.83 | 54.344 | 53.91 | 6H | 54.376 | 54.676 | 55.026 | 55.238 | 56 | 56.429 | 54.5 | |
| M56x1 | 1 | 6g | 55.97 | 55.79 | 55.32 | 55.18 | 54.891 | 54.568 | 6H | 54.917 | 55.153 | 55.35 | 55.54 | 56 | 56.334 | 55 | |
| M58x4 | 4 | 6g | 57.94 | 57.47 | 55.34 | 55.11 | 53.61 | 52.642 | 6H | 53.67 | 54.27 | 55.402 | 55.717 | 58 | 58.892 | 54 | |
| M58x3 | 3 | 6g | 57.95 | 57.58 | 56 | 55.79 | 54.704 | 53.943 | 6H | 54.752 | 55.252 | 56.051 | 56.331 | 58 | 58.713 | 55 | |
| M58x2 | 2 | 6g | 57.96 | 57.68 | 56.66 | 56.48 | 55.797 | 55.251 | 6H | 55.835 | 56.21 | 56.701 | 56.937 | 58 | 58.525 | 56 | |
| M58x1.5 | 1,5 | 6g | 57.97 | 57.73 | 56.99 | 56.83 | 56.344 | 55.91 | 6H | 56.376 | 56.676 | 57.026 | 57.238 | 58 | 58.429 | 56.5 | |
| M60x5.5 | 5,5 | 6g | 59.93 | 59.37 | 56.35 | 56.09 | 53.971 | 52.7 | 6H | 54.046 | 54.796 | 56.428 | 56.783 | 60 | 61.149 | 54.5 | |
| M60x4 | 4 | 6g | 59.94 | 59.47 | 57.34 | 57.11 | 55.61 | 54.642 | 6H | 55.67 | 56.27 | 57.402 | 57.717 | 60 | 60.892 | 56 | |
| M60x3 | 3 | 6g | 59.95 | 59.58 | 58 | 57.79 | 56.704 | 55.943 | 6H | 56.752 | 57.252 | 58.051 | 58.331 | 60 | 60.713 | 57 | |
| M60x2 | 2 | 6g | 59.96 | 59.68 | 58.66 | 58.48 | 57.797 | 57.251 | 6H | 57.835 | 58.21 | 58.701 | 58.937 | 60 | 60.525 | 58 | |
| M60x1.5 | 1,5 | 6g | 59.97 | 59.73 | 58.99 | 58.83 | 58.344 | 57.91 | 6H | 58.376 | 58.676 | 59.026 | 59.238 | 60 | 60.428 | 58.5 | |
| M60x1 | 1 | 6g | 59.97 | 59.79 | 59.32 | 59.18 | 58.891 | 58.568 | 6H | 58.917 | 59.153 | 59.35 | 59.54 | 60 | 60.334 | 59 | |
| M62x4 | 4 | 6g | 61.94 | 61.47 | 59.34 | 59.11 | 57.61 | 56.642 | 6H | 57.67 | 58.27 | 59.402 | 59.717 | 62 | 62.892 | 58 | |
| M62x3 | 3 | 6g | 61.95 | 61.58 | 60 | 59.79 | 58.704 | 57.943 | 6H | 58.752 | 59.252 | 60.051 | 60.331 | 62 | 62.713 | 59 | |
| M62x2 | 2 | 6g | 61.96 | 61.68 | 60.66 | 60.48 | 59.797 | 59.251 | 6H | 59.835 | 60.21 | 60.701 | 60.937 | 62 | 62.525 | 60 | |
| M62x1.5 | 1,5 | 6g | 61.97 | 61.73 | 60.99 | 60.83 | 60.344 | 59.91 | 6H | 60.376 | 60.676 | 61.026 | 61.238 | 62 | 62.429 | 60.5 | |
| M63x1.5 | 1,5 | 6g | 62.97 | 62.73 | 61.99 | 61.83 | 61.344 | 60.91 | 6H | 61.376 | 61.676 | 62.026 | 62.238 | 63 | 63.429 | 61.5 | |
| M64x6 | 6 | 6g | 63.92 | 63.32 | 60.02 | 59.74 | 57.425 | 56.047 | 6H | 57.505 | 58.305 | 60.103 | 60.478 | 64 | 65.241 | 58 | |
| M64x5.5 | 5,5 | 6g | 63.93 | 63.37 | 60.35 | 60.09 | 57.971 | 56.7 | 6H | 58.046 | 58.796 | 60.428 | 60.783 | 64 | 65.149 | 58.5 | |
| M64x4 | 4 | 6g | 63.94 | 63.47 | 61.34 | 61.11 | 59.61 | 58.642 | 6H | 59.67 | 60.27 | 61.402 | 61.717 | 64 | 64.892 | 60 | |
| M64x3 | 3 | 6g | 63.95 | 63.58 | 62 | 61.79 | 60.704 | 59.943 | 6H | 60.752 | 61.252 | 62.051 | 62.331 | 64 | 64.713 | 61 | |
| M64x2 | 2 | 6g | 63.96 | 63.68 | 62.66 | 62.48 | 61.797 | 61.251 | 6H | 61.835 | 62.21 | 62.701 | 62.937 | 64 | 64.525 | 62 | |
| M64x1.5 | 1,5 | 6g | 63.97 | 63.73 | 62.99 | 62.83 | 62.344 | 61.91 | 6H | 62.376 | 62.676 | 63.026 | 63.238 | 64 | 64.429 | 62.5 | |
| M64x1 | 1 | 6g | 63.97 | 63.79 | 63.32 | 63.18 | 62.891 | 62.568 | 6H | 62.917 | 63.153 | 63.35 | 63.54 | 64 | 64.334 | 63 |
